OLI VIBRATOR MOTORS

Oli Motovibrators are global leaders in industrial vibrator motors.  Oli MVE external electric motor vibrators can be used for general applications in various industrial sectors on machines and vibrating tables, improve emptying hoppers and silos, used as flow aids for tip trucks, conveying, screening, sizing or compacting materials in a variety of industries. Electric vibrating motors are suitable for use with inverters (variable frequency drive) and have a centrifugal force up to 26,000 kgs with multiple voltage options.   We stock Oli MVE standard, micro, direct current (DC) and stainless steel vibrators in 2, 4, 6 and 8 pole options.

We also stock OR and OT pneumatic vibrator flow aids for increased process efficiency and improved plant safety.

Oli Vibtrator Motors

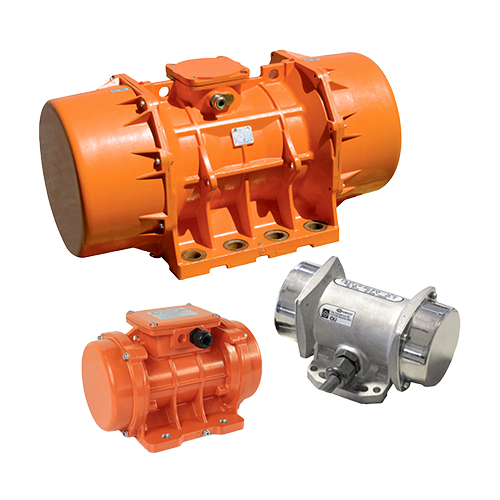

Oli MVE Standard

MVE Standard

The MVE standard vibrating motors are an efficient solution for general applications in various industrial sectors on vibrating tables, conveyors, screening, compaction table, fluid beds, feeding, emptying hoppers or silos. Utilised in the food processing construction, mining, foundry and quarrying industries.

They have a centrifugal force ranging from 20 to 30,000 kg.  Available in 0.03 to 16.5 kW, 2, 4, 6, 8 poles, single and three phase.
Oli MVE DC

MVE DC

These external Oli DC vibrator motors are ideal on tip trucks, hoppers installed on industrial or agricultural vehicles and on the grids of the concrete truck pump to allow an efficient flow of materials.

Capable of withstanding harsh environments the DC motor vibrators have a centrifugal force range of 50 to 1,500 kg.  Available in 12 volts and 24 volts from 0.08 to 0.16kW.
Oli MVE Micro

MVE Micro

The MVE Micro are external vibrators characterised by their small size and consist of an electric motor housed in a robust cast iron body.  They can be used for emptying small hoppers or silos or on vibrating equipment used to transport, screen, size or compact materials in the food, plastic and chemical industries.

Featuring a centrifugal force of 3 to 65 kg.  Available from 0.03 to 0.07kW, 2 poles and single or three phase.
Oli MVE Stainless

MVE Stainless Steel

Housed in a stainless steel these external electric vibrators can be used as flow aids, on container activators to improve material discharge and as drives on vibrating machines for various purposes mainly in the processing food industry such as frozen food, fruit/vegetable washing, fluid beds for drying grains and/or powders, sieving or sizing.

Centrifugal force 105 to 500kg and are available in 2, 4, 6, 8 pole three phase.
Oli MVE Single Phase

MVE Single Phase

An efficient solution for conveying, screening, feeding, emptying hoppers and silos. Utilised in the food processing construction, mining, foundry and quarrying industries.

Available in 0.03 to 16.5 kW, 2, 4, 6, 8 poles, single phase.

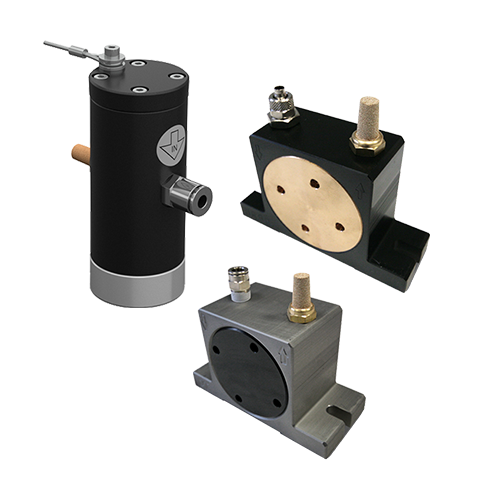

OLI OR Pneumatic Rotational Vibrators

OR Pneumatic Vibrator

OR rotational roller vibrators are used on silos, hoppers, pipes and chutes as well as in compacting concrete.  The installation does not require drilling the walls of the hopper, chute or pipe, for this reason they are particularly suitable for integration on existing systems and machinery.
OLI OT Pneumatic Rotational Vibrators

OT Pneumatic Vibrator

The OT pneumatic vibrators generate a high frequency vibration as they have a higher rotation speed and are ideal to compact concrete where a particularly smooth and porosity-free surface finish is required.  They can also be used on processing lines of the food industry, transport of powders and granules, compaction, for hopper emptying and discharge of the various material from silos, channels, chutes and pipes.  They are also quieter making them suitable for indoor applications.
