Brook Crompton's multi mounting options

REMOVABLE FEET AND MULTIPLE BOLTS HOLES OFFERS VERSATILITY

Brook Crompton’s high efficiency three phase electric motors feature removable feet and multiple bolt hole locations around the motor, designed for flexibility and ease of installation in a variety of applications. These multi mounting offerings are available on both cast iron and aluminium electric motors.

• Mounting options for both aluminium and cast iron motors include B3 with feet and end shield, B5 large flange mounting, B35 with feet and large flange mounting, B14 small flange mounting and B34 with feet and small flange mounting.
• Removable feet enable the motor to be flange mounted horizontally or vertically.
• Removeable feet also helps when switching between different mounting options or when different configurations are required. The motor can then be easily adapted to space constraints or specific application needs.

• Multiple bolt hole locations allow the terminal box to be positioned to the left, right or top ensuring compatibility with a wide range of machine set ups.
• Multiple bolt holes also allow the motor to be adaptable to various mounting frames, including base plates or custom fixtures, ensuring suitability for different applications such as pumps, fans, and conveyors.

Whether mounted on a wall, at a specific angle, or in a confined space, the combination of removable feet and multiple bolt hole locations makes Brook Crompton motors highly versatile, user-friendly and suitable for a broad range of industries, including manufacturing, processing, and material handling. This flexibility reduces the need for bespoke solutions, simplifying installation for both new builds and retrofits.

Brook Crompton’s three phase electric motors range includes 2, 4, 6 and 8 pole with frame sizes from 63 through to 355 or 0.18 to 374 kW. Most sizes are available off the shelf for both aluminium and cast iron. Contact our sales team on 06 354 3651 or This email address is being protected from spambots. You need JavaScript enabled to view it. for further information or to discuss your requirements.

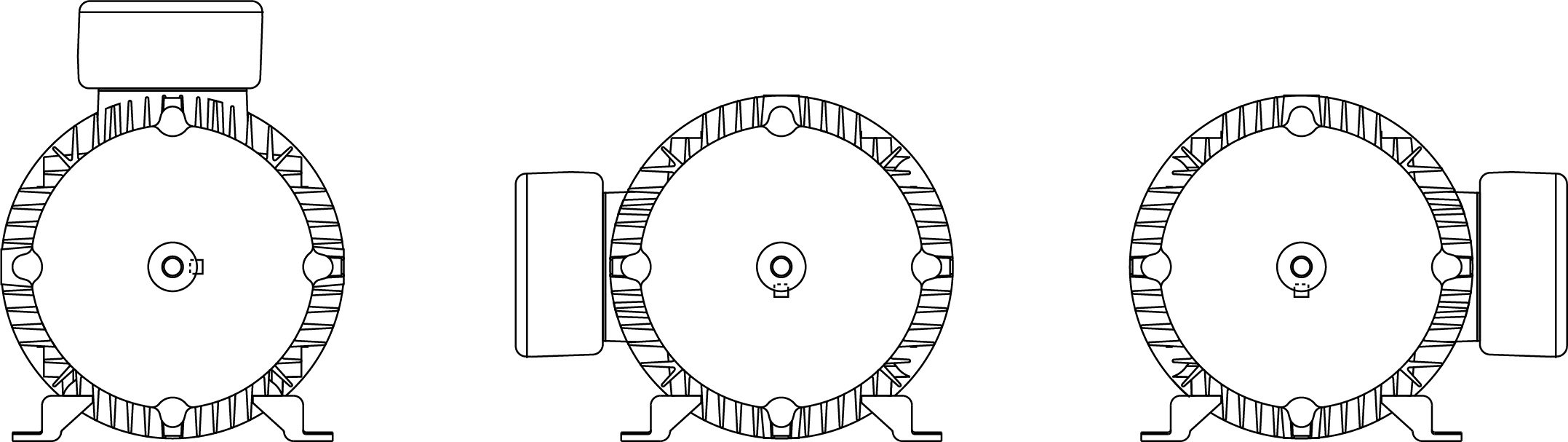

B3 foot mount and end shield with the termical box positioned either top, left or right.

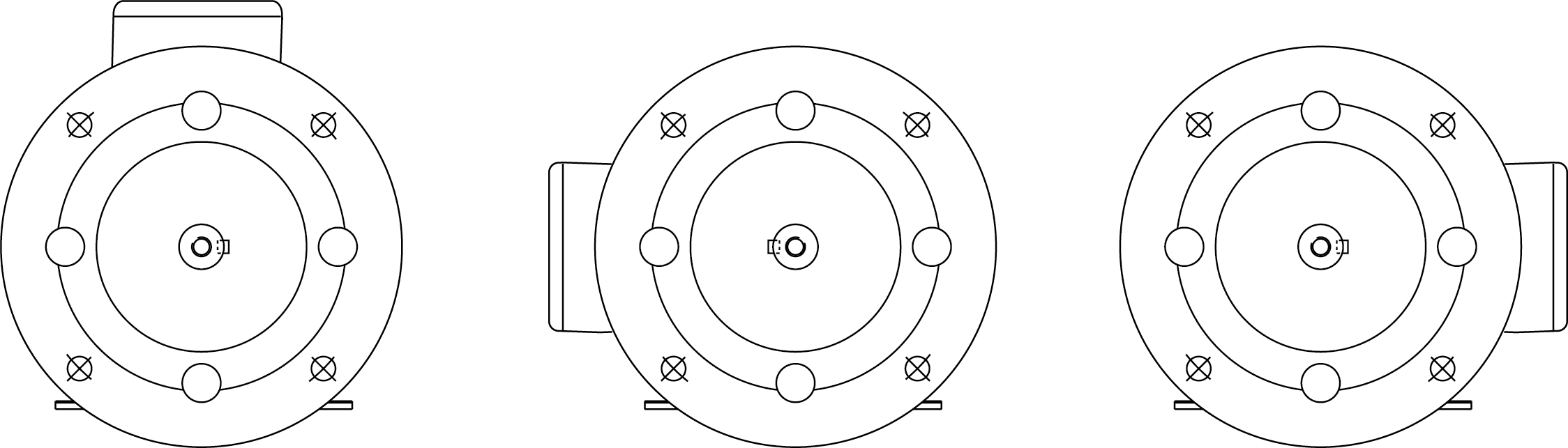

B35 feet and large flange with terminal box positioned either top, left, or right. Remove feet for B5 mounting.

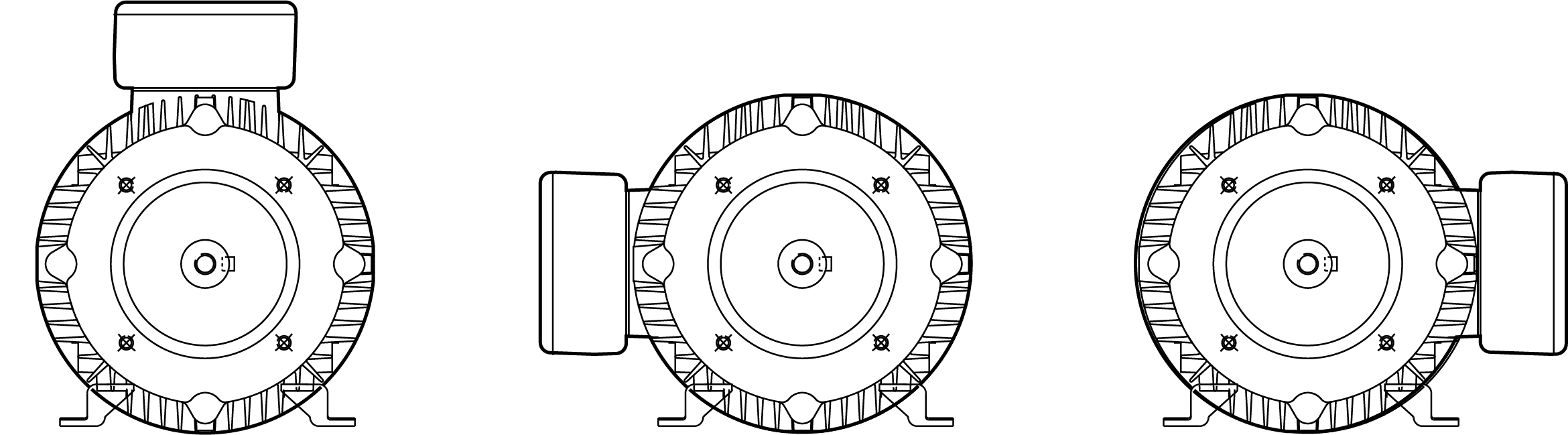

B34 feet and small flange mount with terminal box positioned either top, left or right. Remove feet for B14 mounting.

For information on mounting configurations and flange types click here.  For a quick refernce guide of this information click here.
